High-precision IMUs: Guiding every move

Enhance your system's precision and stability with Epson's advanced Inertial Measurement Units (IMUs)

Explore Epson IMU solutions, engineered for critical applications in aerospace, robotics, industrial automation, and sensor fusion.

Enhance your system's precision and stability

Together with Epson, Texim Europe specializes in precise IMU solutions for industrial, robotics, industrial automation, and aero(space) systems. With our expertise in advanced QMEMS technology QMEMS is Epson’s advanced quartz-based MEMS technology, enabling highly accurate and stable motion sensing. and IP67-rated protection, we deliver reliable performance tailored to even the toughest environments.

What is an IMU?

An Inertial Measurement Unit (IMU) measures movement in three dimensions using 3-axis gyroscopes and accelerometers. These sensors track rotation, speed, and orientation, enabling precise navigation and stability control. IMUs are essential for applications in Aero(space), drones, autonomous systems, and industrial robotics. Especially when accurate motion data is crucial for performance, safety and navigation.

Browse All IMUs Browse IP67-rated IMUs

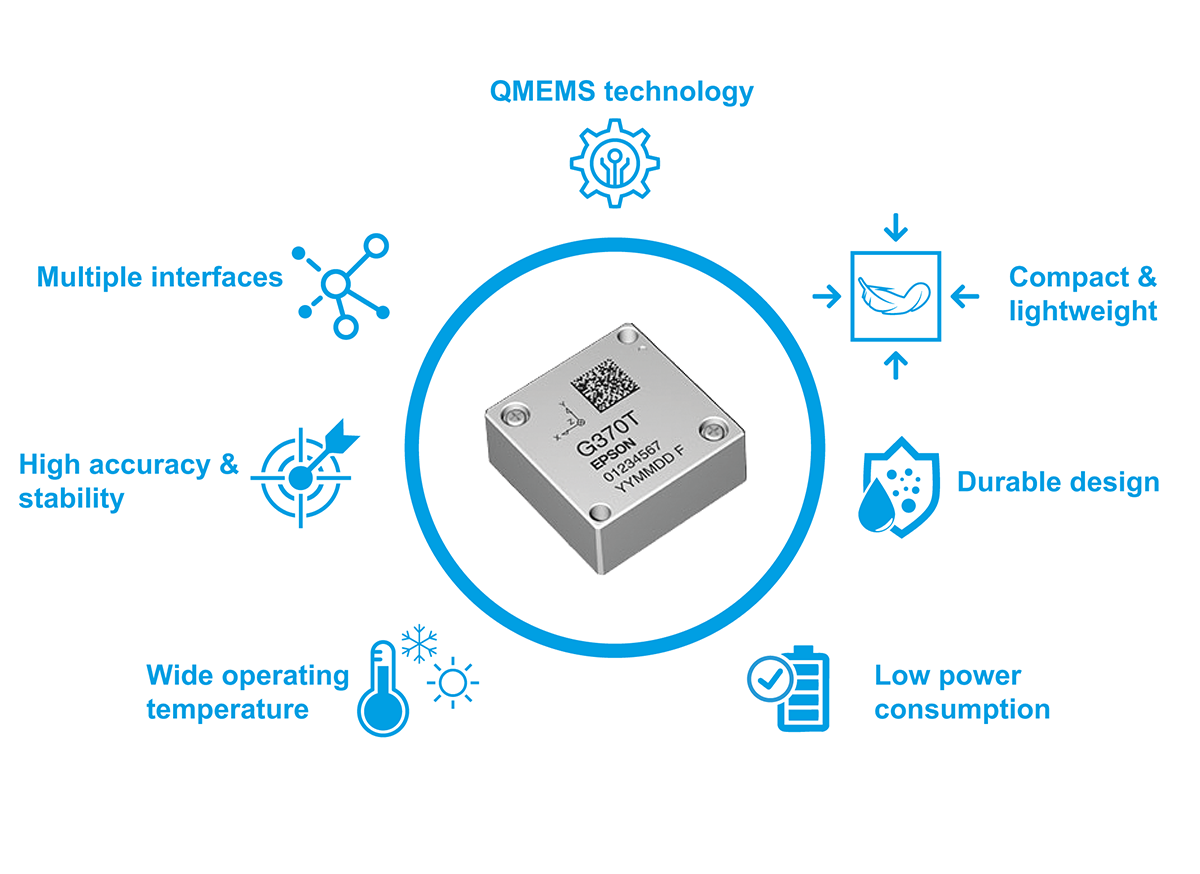

Key features of our IMUs

QMEMS gyro technology:
Quartz MEMS for stable and high-precision motion detection.
Wide operating temperature:
Reliable performance from extreme heat to freezing cold.
Compact and lightweight:
Optimized for space-saving and weight-sensitive applications.
Durable design:
IP67-rated models suitable for harsh environments*.
Multiple interfaces:
CAN & CANopen, RS422, and other industrial interfaces for seamless integration.
Low power consumption:
Ideal for energy-efficient, battery-dependent systems.

*IP67-rated models have a bigger housing

Explore IMU applications

The IMUs we provide are made for applications that require precise and reliable motion sensing.
These sensors perform excellent across industries, from automation to aerospace.

on the applications for inertion measurement sensors.

Aerospace and drones
Ensure stable flight control and precise navigation.
Autonomous vehicles & ships
Facilitate accurate motion sensing for self-navigating technologies.
Industrial automation
Monitor machinery for efficiency and safety.
Agriculture technology
Enhance precision in autonomous farming equipment.
Predictive maintenance
Monitor vibrations in infrastructure like railway tracks.

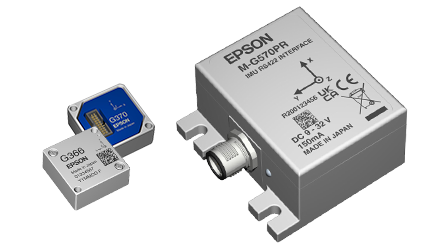

IMU product lineup

Together with Epson, Texim Europe offers a range of IMUs designed to meet various precision motion sensing needs.
for a full oversight of the key models and their specifications.

Product model	Gyro range (°/s)	Bias instability (°/h)	Accelerometer range (G)	Operating temperature (°C)	Interface	Current consumption	Size (mm) / Weight (g)
M-G370PDT	±200	0.8	±8 or ±16	-40 to +85	SPI / UART	16 mA, 3.3V	24x24x10 / 10
M-G370PDG	±450	0.8	±8 or ±16	-40 to +85	SPI / UART	16 mA, 3.3V	24x24x10 / 10
M-G366PDG	±450	1.2	±8 or ±16	-40 to +85	SPI / UART	16 mA, 3.3V	24x24x10 / 10
M-G330PDG	±400	3.0	±8 or ±16	-40 to +85	SPI / UART	16 mA, 3.3V	24x24x10 / 10
M-G570PR20	±450	0.5	±15	-30 to +70	RS422	60 mA, 12V	65x60x30 / 150
M-G552 Series	±450	0.8	±10	-30 to +80	CANopen / RS422	32 mA, 12V	65x60x30 / 115

Full product lineup

Select the right IMU for your application

Need assistance? At Texim Europe, we don’t just deliver components; we provide tailored solutions. Our expert engineers support you from initial concept to integration, ensuring that our IMUs meet your exact specifications and system requirements.

Request IMU Advice Browse All IMUs Browse IP67-rated IMUs

Why choose Texim Europe?

Expert guidance
Our team has in-depth knowledge of IMU technology and its industrial applications. We collaborate closely to solve complex technical challenges and optimize your design.
Thorough product insights
With detailed specifications and transparent documentation, we make selecting the right IMU straightforward and effective.
Custom integration support
From hardware compatibility to software configurations, we guide you through every stage of integrating our IMUs into your systems.

Proven reliability
Our long-standing partnerships with leading manufacturers, like Epson, guarantee access to top-tier, high-performing components that excel in harsh environments.
Comprehensive after-sales support
We stand by your side post-purchase, providing ongoing support and ensuring your applications continue to perform seamlessly.
