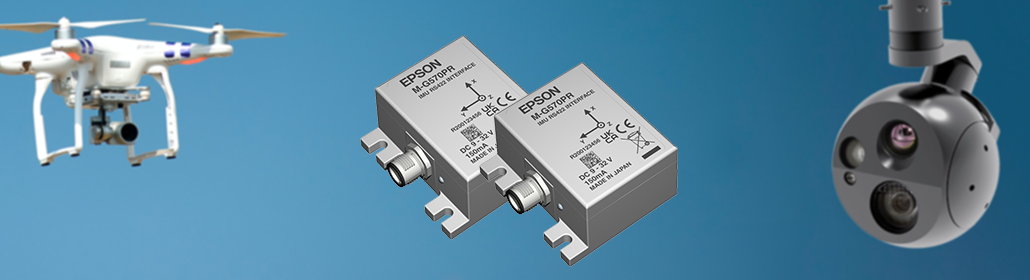

M-G570PR IMU from Epson

High precision IMU with multi-sensor technology

Due to the rising demand for high-precision IMUs essential for attitude control, Epson introduced its premium model, the M-G570PR. This device features high-performance six-axis sensors, high precision, low noise, and an IP67 rating for dust and water protection.

Based on the M-G370PDG it uses Epson's proprietary multi-sensor technology to improve performance by combining multiple IMUs. This achieves gyro bias instability of 0.5°/h and angle random walk of 0.04°/√h, enabling more accurate measurement. In addition, the M-G570PR helps to save energy, it consumes a low current of about  60mA at 12V.



The device is housed in an IP67-rated metal enclosure that provides optimal protection against dust and water intrusion. It features an RS422 serial communication interface with 32 bit data resolution, with a transmitting data speed of up to 2kSps.


Key features
  • Compact, lightweight and IP67 rated
  • Advanced multi-sensor technology
  • Gyro bias stability: 0.5°/h
  • Angular random walk: 0.04°/√h
  • Gyroscopic sensor non-linearity of 0.05% (full-scale range)
  • RS-422 interface
  • Low power consumption: 12V, 60mA




Applications
  • Precision agriculture
  • Automated Guided Vehicles (AGVs)
  • Antenna platform stabilization
  • EO/IR camera gimbals
  • Vibration control and stabilization
