PICO-ITX with 8th Gen Intel CPU

PICO-ITX with 8th Gen Intel CPU

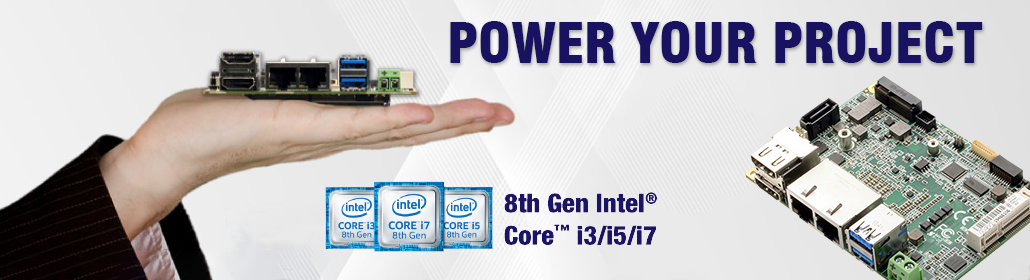

The PICO-WHU4 from AAEON is the only compact PICO-ITX board with 8th Generation Intel® Core™ processors built for AI and Edge applications. This board support up to 16 GB of RAM, and comes with a brilliant set of I/O features. In addition it supports expansion cards like AI Core X with Intel® Movidius® Myriad™ X for even more AI@Edge processing power.

The PICO-WHU4 offers I/O features such as dual 4K Ultra HDMI output, dual Gigabit Ethernet ports, two COM ports and four USB ports making this board the perfect choice for digital signage or Industrial IoT gateway applications. With a wide operating temperature range of 0°C to 60°C and available with an optional enclosure it can work almost anywhere.


Features
  • 8th Intel® Core™ i7/i5/i3/Celeron CPU SoC
  • Non-ECC DDR4 SODIMM Slot, up to 16GB
  • Dual HDMI ports (HDMI 1.4b)
  • 2 GbE, SATA 6.0 Gb/s, 4 GPIO
  • 2 USB 3.2 Gen 2 (Rear), 2 USB 2.0 (Pin header),
  • 2 RS-232/422/485
  • Full size mSATA/mPCIe (select by BIOS), M.2 2230 (E key)
  • 12V only (Terminal block and DC barrel co-design)

Applications
  • Smart retail
  • Drones
  • Interactive kiosks
  • Digital Signage
  • Industrial IoT gateways
  • Security
