Type

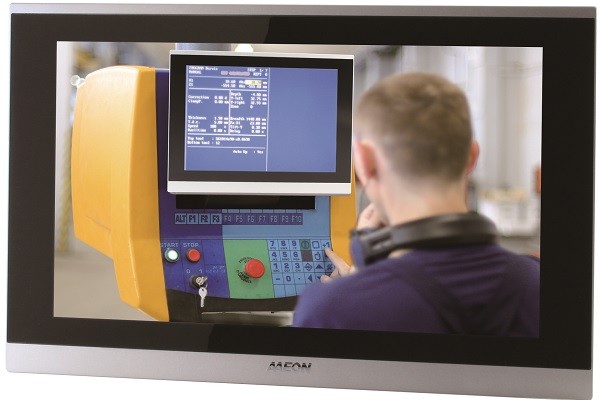

Panel PC
2458|Panel PC |Select
Display size
15.6 inch
2832|15.6 inch|Decimal
Aspect ratio
16:9
2206|16:9 |Select
Resolution
1920x1080
2831|1920x1080 |MultiSelect
Number of colors
16.7M
2459|16.7M |Select
Backlight
LED
2205|LED |MultiSelect
Brightness
450 cd/m²
1236|450 cd/m²|Numeric
Viewing angle
178-178 hor ° - ver °
2204|178-178 hor ° - ver °|MultiSelect
CPU / SoC / Socket
Intel Core i3-1215UE 4.40 GHz
1057|Intel Core i3-1215UE 4.40 GHz |MultiSpecSelect
Performance
Passmark CPU Mark: 8617
3139|Passmark CPU Mark: 8617 |Numeric
Memory
DDR5 SODIMM x 2
1235|DDR5 SODIMM x 2 |MultiSpecSelect
Storage
2.5'' SATA HDD x 1 , M.2 (22*80mm M-key PCIe 4.0 x4 for NVMe) x 1
2393|2.5'' SATA HDD x 1 , M.2 (22*80mm M-key PCIe 4.0 x4 for NVMe) x 1 |MultiSpecSelect
Graphics
Intel UHD 1.1 GHz
1234|Intel UHD 1.1 GHz |MultiSelect
Video signal
HDMI x 1
1059|HDMI x 1 |MultiSpecSelect
Touchscreen
Projected Capacitive
1238|Projected Capacitive |MultiSpecSelect
Network & wireless
LAN 1 Gbit x 2
1060|LAN 1 Gbit x 2 |MultiSpecSelect
Expansion slots
M.2 (30*52mm B key) x 1 , M.2 (22*30mm E key) x 1
2392|M.2 (30*52mm B key) x 1 , M.2 (22*30mm E key) x 1 |MultiSpecSelect
Connections
USB 3.x: 3
1646|USB 3.x: 3 |Numeric
RS-232/422/485: 2
1648|RS-232/422/485: 2 |Numeric
Other connections
USB Type C x 1
1058|USB Type C x 1 |MultiSpecSelect
Fanless
Yes
1650|Yes |MultiSelect
Operating temp.
Min.: -20 °C
2855|Min.: -20 °C|NumericDisplayDetailAsText
Max.: 50 °C
2856|Max.: 50 °C|NumericDisplayDetailAsText
Mounting
VESA , Panel
1243|VESA , Panel |MultiSpecSelect
Dimensions
Length: 420.2 mm
1698|Length: 420.2 mm|Decimal
Width: 264.5 mm
1699|Width: 264.5 mm|Decimal
Height: 73.8 mm
1700|Height: 73.8 mm|Decimal
Protection
IP-65 front bezel
1242|IP-65 front bezel |MultiSpecSelect
Operating system
Windows 10 , Windows 11 , Windows 10 IoT
2457|Windows 10 , Windows 11 , Windows 10 IoT |MultiSpecSelect
Input power
+9 to +30 DC V
1237|+9 to +30 DC V|MultiSpecSelect
Weight
5.2 kg
2209|5.2 kg|Decimal
Package contents
Phoenix Power Connector , OMNI-2155-ADP , Screws
2828|Phoenix Power Connector , OMNI-2155-ADP , Screws |MultiSpecSelect
Approvals / certifications
CE/FCC class A
3037|CE/FCC class A |MultiSpecSingleSelect
