DC / DC converter in the format of a RRC 2040 Battery

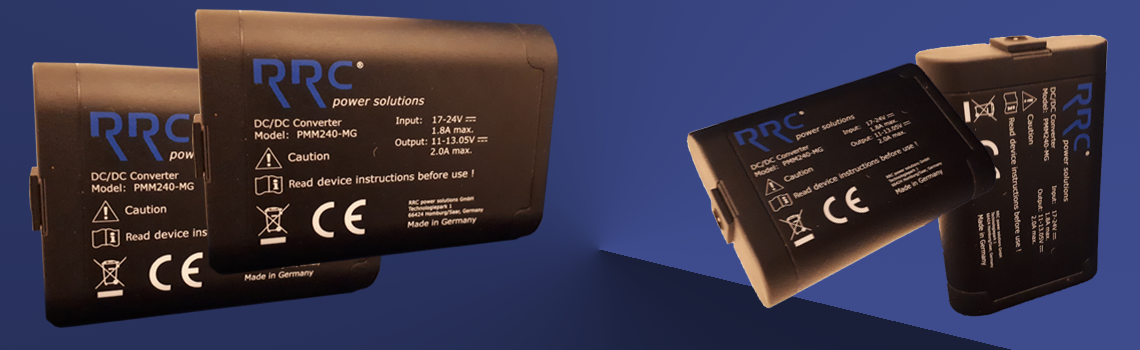

The PMM240-MG from RRC is a dc/dc converter in the format of a RRC 2040 which converts the 19-24V of the charger power supply to the battery voltage of approximately 12V.

For powering your device, an RRC 2040 battery or the mains driven DC / DC  PMM240-MG can be used. It making use of the power supply of the RRC MBC charger.

When having AC power available, the power supply of the MBC is connected via a DC jack to the PMM240-MG, saving Capacity from the 2040 Battery.



For testing purposes the PMM240-MG is also available within our demoloan concept, for a defined period of time.

The demoloan set contains:

  • The dc/dc  RRC-PMM240-MG
  • Charger RRC-SMB-MBC  (includes power supply)
  • Mains Cable IEC320-C5 for the power supply. IEC320-C5(EU)   IEC320-C5(SWISS)   IEC320-C5(UK)   IEC320-C5(UL)
  • Battery RRC-2040



Features

  • Specifications:
  • Type: RRC2040 size
  • Output power: 24 W
  • Output voltage: 11-13 Vdc
  • Output current: 2A max
  • Input voltage: 17 to 24 Vdc
  • Input current: 1.80A max
  • Approvals: CE
  • Operating temperature: -20° to +60°C
  • Dimensions: L: 85mm, W: 59mm, H: 22mm

Applications

  • Medical
  • Industrial
