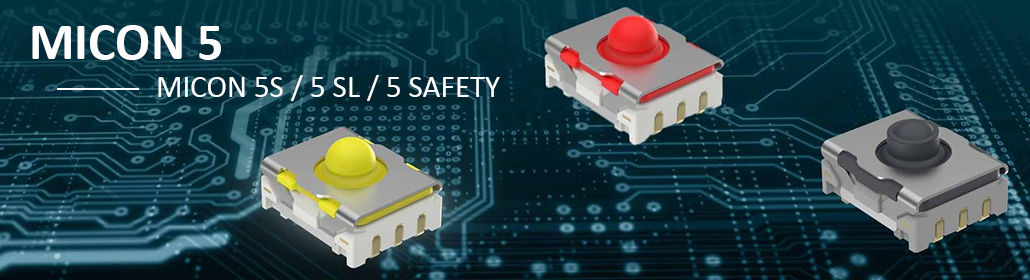

MICON 5 Tactile switches

HMI switch MICON 5 now with dual circuit or fully sealed

The MICON 5 robust small tactile switch series from RAFI is now available with dual circuit, fully sealed and extended life versions. Due to their temperature resistance from -40 to +125°C, they are ideally suited for all human-machine applications.

All MICON 5 switches have a base of just 5.1 x 6.4 mm and a height of 3.85 mm and built-in gold contacts. Thanks to the increased IP protection class (MICON 5 S and SL), these switches can be used on PCBs that are made robust against environmental influences or contamination by means of conformal coating, potting or dip coating. The two potential-free separate NC and NO contacts (MICON 5 SAFETY) comply with all relevant safety standards and are unique for its size.


The MICON 5 series offers a range of accessories including round and square plungers in various dimensions and illumination variants, indicator fields for ring lighting, and bezels in all basic colors.



MICON 5 SAFETY: dual circuit

  • 1 NC and 1 NO contact, isolated
  • IP54 and/or IPx7
  • Up to 1,000,000 cycle lifetime
  • Actuating forces: 2.9 or 5.6 N
  • SMT terminals
  • Complies to all relevant industrial safety standards



MICON 5 S: Sealed

  • 1 NO contact
  • IP67
  • Up to 1,000,000 cycle lifetime
  • Different actuating forces: 1.5 to 7.0 N
  • SMT/ THT terminals
  • Various lengths, forms, and illumination options



MICON 5 SL: Sealed and long life

  • Increased lifetime (target 10 Mio.)
  • 1 NO contact
  • IP67
  • Actuating forces: 2.5 or 5.0N
  • SMT terminals
  • Ideal for joysticks







Industrial automation

Home appliance


Medical equipment
