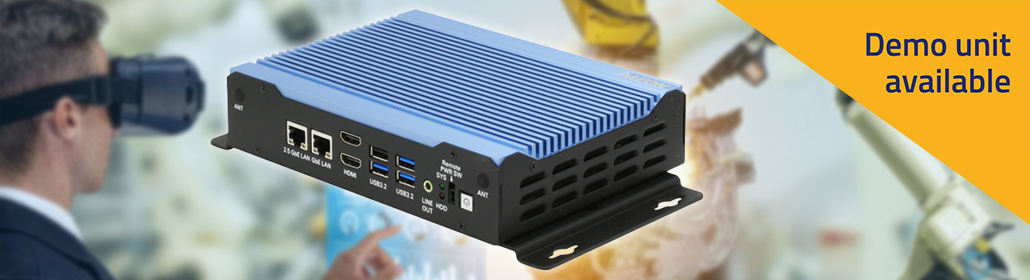

BOXER-6643-TGU: versatile BOX PC powered by 11th Gen. Tiger Lake U CPU

Versatile BOX PC powered by 11th Gen. Intel Core

The BOXER-6643-TGU fanless BOX PC from AAEON delivers the performance and innovative technologies of the 11th Gen. Tiger Lake U CPU to applications in tough industrial environments, providing a -20°C to 60°C operating temp. range, 5G support and more.



Supporting up to 64GB DDR4, 4K high definition video along with the Intel® Iris® Xe embedded graphics, users can leverage more powerful GPU processing to power AI and Edge Computing industrial applications.



To ensure quick communication for real-time processing this BOX PC is equipped with a 2.5 Gbps and a 1.0 Gbps LAN port and features the latest I/O specifications including 3x USB 3.2 Gen2, USB 2.0, 2x HDMI, 8-bit DIO and dual COM ports. A M.2 B-key 3052 slot supports wireless networks, including Wi-Fi, 4G and 5G cellular communication.



The BOXER-6643-TGU supports storage options including mSATA and NVMe, and features a SATA III port connected directly to the board making the system suitable for high-vibration applications. With a 2.5” SATA III drive slide out tray on the side of the system, maintenance and installation is easy. Additionally, two easy-access panels on the bottom of the system allows users to quickly add on or upgrade expansion cards and memory modules.


Key features
  • 11th Generation Intel® Core™ U delivers excellent computing power
  • -20°C to 60°C operating temperature
  • DDR4 slot x2, up to 64GB
  • M.2 B-key 3052 slot supports WiFi, 4G and 5G
  • Supports high speed NVMe storage (M.2 2280)
  • 9 to 36VDC input, with power button/ LED and remote power switch
  • 2.5 GbE and GbE LAN

Applications

Industrial automation

Digital signage

Industrial IoT

Robotics

Edge computing










Need samples?

Send us a sample request
