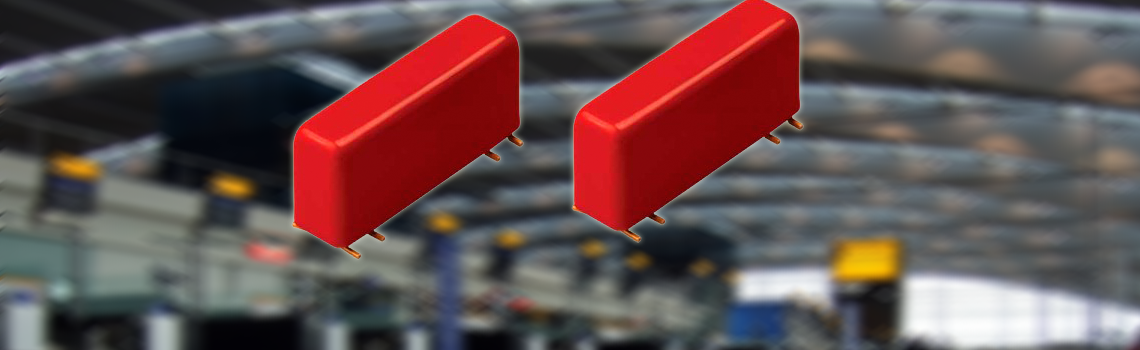

Miniature 2-form C SMD reed relays

The 2362 series reed relay from Coto Technology is the SMD version of the popular 2342 series pico relay. This surface mountable 2 Form C reed relay is designed for high reliability and offers a proven reed design with longer life than competing 2 Form C EMR products.

These reed relays are available with 5V and 12V coil voltages, and are able to switch up to 3W. The
2362 is the ideal solution for automated test, instrumentation and telecommunication applications to increase system reliability and life.

• &nbsp2 Form C contacts
• &nbspHermetically sealed contacts
• &nbspCoil voltages: 5V and 12V
• &nbsp3W switched power
• &nbspLong life & high reliability
• &nbspMagnetically shielding steel shell
• &nbspSMD version of popular 2-Form C 2342
• &nbspGull wing terminal style
• &nbspDimensions (LxWxH): 20,6 x 6,6 x 9,4mm
• &nbspRoHS compliant

• &nbspAutomated test equipment
• &nbspInstrumentation
• &nbspTelecommunication
