Beagle Bone Black 7.0 inch LCD CAPE


The 4DCAPE-70 from 4D Systems is a 7.0" LCD CAPE, specifically designed to provide a primary display for the Beagle Bone Black, allowing direct connection and usability. The Beagle Bone Black connects directly to the back and provides everything the CAPE requires such as power and display signals. Another CAPE can be added to the secondary connectors on the back of the 4DCAPE-70 if required. The 4DCAPE-70 is not compatible with the previous Beagle Bone.

This CAPE is also available with a resistive touch, and is directly connected to the Beagle Bone, which eliminates the need for a separate power source. The 4DCAPE-70 utilizes the drivers developed for the CircuitCo LCD7 A3, however provides a different form factor and pricing point to the LCD7.

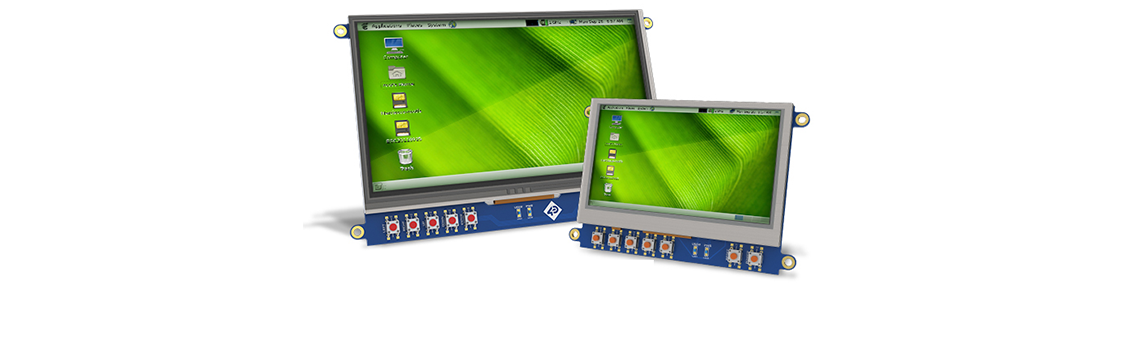

The CAPE features 7 push buttons below the screen, LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER, along with 2 LEDs to indicate Power and User Status (normally heartbeat). 4D Systems also supplies a 4.3" version of this CAPE, the 4DCAPE-43.


Features
•  7.0" TFT LCD CAPE for the Beagle Bone Black
•  Resolution: 800x480
•  Plug-and-play
•  With resistive touch (4DCAPE-70T) or non-touch (4DCAPE-70)
•  7 push buttons, including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER
•  2 LED Lights for Power and User (configurable)
•  No additional power required
•  2x2 Jumper with shunts for EEPROM CAPE ID selection
•  Fully compatible with existing drivers already written for the Beagle Bone
•  Module dimensions with Beagle Bone Black: 179.9 x 114.9 x 19.5mm (approx.)
•  4x 3.5mm mounting holes
•  RoHS and CE compliant


Discover all features of the CAPE series and watch the video on YouTube.
